ROI of a No-Programming Robotic Welding Cell: A Practical Guide for Structural Steel Applications

Most robotic welding ROI articles give you a formula and leave you to fill in the numbers yourself. This one does not. We work through three complete structural steel scenarios — a medium-volume job shop, a high-volume production fabricator, and a transformer tank manufacturer — with cost estimates based on current system pricing , benchmark cycle times, and realistic payback calculations. You can read the scenario closest to your operation and adapt the numbers to your situation.

The focus throughout is on no-programming robotic welding cells specifically — systems that use 3D laser scanning and autonomous trajectory planning to eliminate teach pendant programming. This distinction matters for ROI because the economics of a no-programming cell are fundamentally different from a traditional programmed cell: the programming cost line disappears, the viable batch size drops to one, and the part mix constraint is removed entirely. These are not marginal improvements to the standard calculation; they change which shops automation is viable for.

If you are not yet familiar with how no-programming robotic welding cells work, read Blog 03: No-Programming Robotic Welding Cell first. This article assumes you understand the technology and are now evaluating whether the economics work for your operation.

A note on pricing:

system costs vary significantly based on configuration (single vs. dual station, positioner type, seventh-axis track, sensor payload, and region-specific installation and commissioning requirements). System costs in this article range from approximately $48K for a single-station configuration to $204K for a fully-equipped large-part system with seventh-axis track and positioner. These are illustrative benchmarks intended for directional ROI estimation. Actual pricing depends on your specific part geometry, production volume, sensor payload requirements, and regional installation conditions. For a site-specific quotation, contact our engineering team with your part specifications and production volume.

The Four Numbers That Drive Every Welding Automation ROI

Before working through the scenarios, it is worth establishing the four variables that determine ROI in every structural steel welding automation calculation. Everything else is derived from these four.

Variable	What it captures	Where to find your number
Loaded labour rate (L)	Welder wage + benefits + employer overhead. The true hourly cost of employing a certified welder, not just the wage rate.	HR / payroll: wage rate × 1.25–1.40 typically covers benefits and overhead in most markets
Manual hours per part (H)	Total welder time per part: setup, tacking, welding, grinding, rework. Not just arc time — total hours from part arrival to completed weld.	Time your best welder on a representative part, including all non-arc time
Robot cycle time per part (C)	Scan time + path generation + weld execution + part change. Includes all time the cell is occupied per part.	Request a cycle time study from the vendor on your representative part
Total cell investment (I)	Equipment + installation + fixturing + commissioning + first-year maintenance budget. Not just the equipment price.	Get a fully-installed price from the vendor; add 15–20% for fixturing and commissioning

The ROI formula is straightforward once you have these four numbers:

Monthly saving  =  V  ×  [ (L × H)  −  (L × 0.15 × C  +  operating cost per part) ] Payback (months) =  I  ÷  Monthly saving Where: V = monthly part volume        L × 0.15 × C = operator cost at 15% of cycle time (loading, monitoring, unloading)        Operating cost per part = power + consumables + maintenance amortised ≈ $1.50–$3.00  Note: For a no-programming cell, there is no programming cost term — that line is zero. For a traditional programmed cell, add: (programmer hours per part × programmer rate) to the robot cost side.

Scenario 1: Medium-Volume Structural Steel Job Shop

Shop profile

Parameter	Value
Operation type	Job shop — project-based structural fabrication
Monthly part volume	120 parts per month, 25–30 different part numbers
Typical part	Beam bracket assembly — 4-sided fillet weld, 200–350 mm legs, 8–12 mm plate
Current workforce	3 certified welders + 1 fitter
Primary pain point	Cannot find a 4th welder; losing orders due to capacity constraint
Cell being evaluated	Single-station vision-guided cell with positioner, no 7th axis

The cost calculation

Input	Value	Source / basis
Loaded welder rate (L)	$54/hr	$38/hr wage × 1.42 burden rate
Manual hours per part (H)	1.6 hrs	Timed on representative bracket: 25 min setup + 52 min welding + 19 min grinding/rework
Robot cycle time per part (C)	0.48 hrs	Vendor cycle study: 8 min scan+plan + 21 min weld + 6 min load/unload
Cell investment (I)	$48K–$80K	Estimated system cost: single-station vision-guided cell with positioner (configuration-dependent)
Monthly volume (V)	120 parts	Current confirmed order book

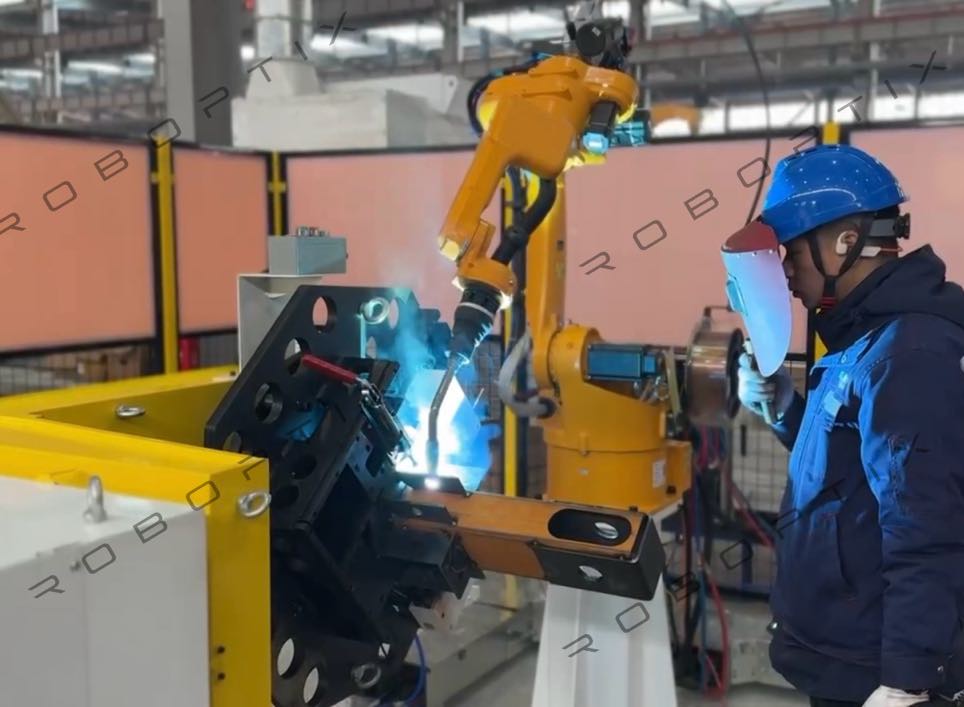

Operator cost per part	$54 × 0.15 × 0.48 = $3.89	15% of cycle time at welder rate (redeployed as operator)
Operating cost per part	$2.10	Power + wire + tips + maintenance amortised

The result

Manual cost per part: $54 × 1.6 = $86.40

Robot cost per part: $3.89 + $2.10 = $5.99

Saving per part: $86.40 − $5.99 = $80.41

Monthly saving: 120 × $80.41 = $9,649

Payback period: approximately 5–9 months (depending on final system configuration)

5–9 monthsPayback period — Scenario 1 Medium job shop, 120 parts/month, $54/hr loaded rate (illustrative)

Two additional value items not in the base calculation: the shop’s capacity constraint (turning away orders due to welder shortage) is estimated at $180,000 in lost annual revenue. At 3× throughput per shift with the cell, this constraint is eliminated in the first year — adding significant value that does not appear in a pure cost-savings ROI calculation.

Scenario 2: High-Volume Structural Fabricator with Repeat Production

Shop profile

Parameter	Value
Operation type	Production fabricator — supply chain component for construction contractor
Monthly part volume	380 parts per month, 8–12 active part numbers
Typical part	Column base plate assembly — T-joint and fillet welds, 16–25 mm plate, 2–4 weld joints per part
Current workforce	5 welders on 2 shifts
Primary pain point	Labour cost is primary margin pressure; want to reduce headcount through attrition
Cell being evaluated	Dual-station vision-guided cell with positioner — simultaneous load/weld

The cost calculation

Input	Value	Source / basis
Loaded welder rate (L)	$61/hr	$44/hr wage × 1.39 burden (union shop)
Manual hours per part (H)	0.95 hrs	Timed: 12 min setup + 34 min welding + 11 min handling
Robot cycle time per part (C)	0.28 hrs	Vendor cycle study: 4 min scan+plan + 8 min weld + 5 min dual-station changeover
Cell investment (I)	$80K–$140K	Estimated system cost: dual-station vision-guided cell with positioner (configuration-dependent)
Monthly volume (V)	380 parts	Contracted production schedule
Operator cost per part	$61 × 0.15 × 0.28 = $2.56
Operating cost per part	$2.40	Higher deposition rate on thick plate

The result

Manual cost per part: $61 × 0.95 = $57.95

Robot cost per part: $2.56 + $2.40 = $4.96

Saving per part: $57.95 − $4.96 = $52.99

Monthly saving: 380 × $52.99 = $20,136

Payback period: approximately 4–7 months (depending on final system configuration and production volume)

4–7 monthsPayback period — Scenario 2 High-volume production, 380 parts/month, $61/hr loaded rate (illustrative)

At 380 parts per month and 2-shift operation, the dual-station cell runs approximately 1,800 hours per year. The cell effectively replaces 2.2 welders on an annualised basis — consistent with the shop’s attrition-based headcount reduction plan. One welder is redeployed as cell operator; one position is eliminated through natural attrition over 18 months.

Scenario 3: Transformer Tank Manufacturer

Shop profile

Parameter	Value
Operation type	OEM transformer tank fabricator — 20–35 units per month
Monthly part volume	28 transformer tanks per month — average 55 weld joints per tank
Typical part	Medium distribution transformer tank: 1.8 m × 1.2 m × 1.4 m, 6–10 mm wall plate, corrugated side panels
Current workforce	6 welders + 2 fitters — 2 shifts
Primary pain point	Each tank is a different configuration — programming cost makes traditional robotics unviable
Cell being evaluated	Single-station vision-guided cell with 7th-axis track and headstock/tailstock positioner

Why traditional robotics fails here — and why no-programming changes it

This scenario illustrates the core ROI difference between a traditional programmed cell and a no-programming cell. With 28 tanks per month and 15–20 different configurations, a traditional cell would require 15–20 × 4 hours = 60–80 hours of programming per month at $90/hour — $5,400–$7,200 monthly in programmer cost alone, before the cell welds a single joint. The economics collapse before the analysis reaches payback period.

A no-programming cell eliminates this cost entirely. Each tank is scanned fresh; the path is generated autonomously. Programming cost is zero regardless of how many configurations the monthly batch contains.

The cost calculation

Input	Value	Source / basis
Loaded welder rate (L)	$58/hr	$41/hr wage × 1.41 burden
Manual hours per tank (H)	19.5 hrs	Timed across 5 representative tanks: welding + repositioning + grinding
Robot cycle time per tank (C)	8.2 hrs	Vendor cycle study: 18 min scan+plan + 7.2 hrs weld + 45 min positioner coordination
Cell investment (I)	$140K–$204K	Estimated system cost: single-station cell with 7th-axis track and headstock/tailstock positioner (configuration-dependent)
Monthly volume (V)	28 tanks	Current production schedule
Operator cost per tank	$58 × 0.20 × 8.2 = $95.12	20% of cycle time (heavier operator involvement for crane loading)
Operating cost per tank	$18.40	Higher consumables on multi-pass thick plate joints
Programming cost saving	$6,300/month	Eliminated: 70 hrs × $90/hr programmer — key no-programming advantage

The result

Manual cost per tank: $58 × 19.5 = $1,131

Robot cost per tank: $95.12 + $18.40 = $113.52

Saving per tank (labour): $1,131 − $113.52 = $1,017.48

Monthly labour saving: 28 × $1,017.48 = $28,490

Monthly programming saving: $6,300 (unique to no-programming cell)

Total monthly saving: $28,490 + $6,300 = $34,790

Payback period: approximately 4–6 months (depending on final system configuration)

4–6 monthsPayback period — Scenario 3 Transformer tank OEM, 28 tanks/month, $58/hr loaded rate (illustrative)

The programming saving line ($6,300/month) is exclusively a no-programming cell advantage.A traditional programmed cell in this scenario would add this cost rather than eliminating it,extending payback from 11 months to over 30 months — beyond most capex policy limits.This is why high-mix, non-repetitive structural steel applications are the strongest economiccase for no-programming cells specifically, not robotic welding cells in general.

Four ROI Items That Traditional Welding Automation Models Miss

Standard ROI models capture labour savings. They typically miss four additional value items that are material to the total ROI of a no-programming robotic welding cell in structural steel applications.

Missed item	Why it is real	Typical annual value
Revenue from unfilled capacity	Shops turning away orders due to welder shortage are losing revenue, not just incurring cost. The cell adds capacity without adding headcount.	$150K–$400K depending on order book and margin
Rework cost reduction	No-programming cells with gap-adaptive parameter control reduce rework from 3–8% to under 1% by adapting weld parameters to actual joint geometry.	$45K–$180K on $2M–$3M annual weld revenue
Recruitment and retention cost avoidance	Each welder hire costs $8K–$25K in recruitment, onboarding, and productivity ramp. Attrition reduction and headcount avoidance are real savings.	$16K–$50K per welder position avoided
Programming cost elimination	Traditional cells accumulate ongoing programming cost as part mix changes. No-programming cells have zero programming cost regardless of part mix.	$30K–$120K/year depending on mix complexity

When all four missed items are included, the total economic case for a no-programmingrobotic welding cell in structural steel fabrication is typically 40–80% larger than thelabour-saving-only calculation suggests. The payback period shortens correspondingly.

Sensitivity Analysis: How Key Variables Affect Payback

ROI calculations are only as good as the input assumptions. The table below shows how the Scenario 1 payback period changes when key variables shift — giving you a sense of how robust the economics are to changes in your actual situation.

Variable changed	From base case	Payback period (months)	Direction
Loaded welder rate	$54/hr → $45/hr (lower labour market)	7–10 months	Longer
Loaded welder rate	$54/hr → $65/hr (tight labour market)	5–7 months	Shorter
Monthly volume	120 parts → 80 parts (lower volume)	8–12 months	Significantly longer
Monthly volume	120 parts → 160 parts (higher volume)	4–6 months	Shorter
Cell investment	$64K → $48K (lower spec / simpler configuration)	4–6 months	Shorter
Cell investment	$64K → $180K (higher spec / dual-station / large-part configuration)	7–10 months	Longer
Manual hours per part	1.6 hrs → 1.2 hrs (simpler parts)	9–13 months	Longer
Manual hours per part	1.6 hrs → 2.2 hrs (complex parts)	4–6 months	Shorter
Include capacity revenue gain	Add $150K/year unfilled revenue	3–5 months	Significantly shorter

Two conclusions stand out from the sensitivity table. First, monthly volume is the most sensitive variable — dropping from 120 to 80 parts nearly doubles the payback period. The minimum viable volume threshold matters more than almost any other input. Second, including capacity-constrained revenue recovery compresses payback dramatically — because for shops that are already turning away orders, the cell is an enabler of revenue, not just a cost reducer.

Frequently Asked Questions

What is the minimum monthly volume for a no-programming robotic welding cell to make financial sense?

Based on the scenarios above, the minimum viable volume for a standard single-station no-programming cell (investment typically in the $48K–$204K range depending on configuration) at a loaded welder rate of $50–$60/hour is approximately 70–90 parts per month with 1.5+ manual hours per part. Below this threshold, the monthly saving is insufficient to amortise the investment within a 48-month payback window. Shops below this volume are better served by semi-automated fixtures or positioners until volume grows. Shops near the threshold should run their own numbers with their actual labour rate and part complexity before deciding.

How do I calculate the loaded labour rate for my welders?

The loaded labour rate is the total annual cost of employing a welder divided by their annual billable hours. Total annual cost includes: base salary, payroll taxes (typically 7–10% of salary), health and dental insurance, retirement contributions, workers’ compensation insurance, and any other benefits. Divide by approximately 1,800 to 1,900 annual hours for a full-time welder. A welder earning $38/hour base wage typically has a loaded rate of $48–$55/hour depending on benefit structure. If you are uncertain, your HR or finance team will have this figure as part of their labour cost modelling.

The scenarios show labour savings, but how long does it take to see the first saving?

The first measurable saving appears in the first month of production operation — typically 8 to 16 weeks after order, once commissioning and operator training are complete. The cell begins producing parts immediately; there is no ramp-up period where it produces below capacity. The savings shown in the scenarios are achievable from month one of production operation, assuming the operator is trained and the weld schedule library is validated for the primary joint types. Some shops see partial savings in months one and two as the operator builds confidence, with full productivity reached by month three.

Should I include the cost of my current welder shortage in the ROI calculation?

Yes — and most standard ROI models do not prompt you to do this. If your shop is currently turning away orders or extending lead times because you cannot hire sufficient welding capacity, the lost revenue from those constraints is a real cost of not automating. To include it: estimate the annual value of orders you decline or defer due to welding capacity constraints, and add this figure as an annual benefit on the robot side of the calculation. This is not a speculative benefit — it is the recovery of revenue you are already failing to capture. Including it typically reduces payback by 30–50% for capacity-constrained shops.

Next Steps

If the scenarios above bracket your operation, you have enough information to take the conversation to the next level. Here is what to do:

• Run your own four inputs: loaded labour rate, manual hours per part, estimated robot cycle time, and total cell investment. The formula in H2-1 gives you a payback estimate in under 10 minutes.
• Request a vendor cycle time study on your representative part. Any credible vendor should be willing to provide a cycle time estimate based on your part drawings before you commit to a purchase. This gives you the ‘C’ variable with real data rather than a benchmark.
• Ask the vendor for a fully-installed price: equipment + delivery + installation + commissioning + first-year maintenance contract. The gap between equipment price and fully-installed price can be substantial — installation, commissioning, fixturing, training, and site-specific integration all add material cost. This is where ROI calculations most commonly go wrong.
• If you are a capacity-constrained shop, quantify your lost revenue before the vendor conversation. This number changes the ROI case significantly and gives you a stronger internal justification for the capital request.
